Simulators : EMDSIM

Delegates must always be safe during workplace safety training, but they need the most realistic experiences possible to assist with skills retention and accurate assessment of competence. When workers may be exposed to high power radio frequencies from transmitters and associated equipment, they will rely on personal detector devices and dosimeters, but these can only be triggered by the hazards they are designed to detect so cannot be used in training exercises.

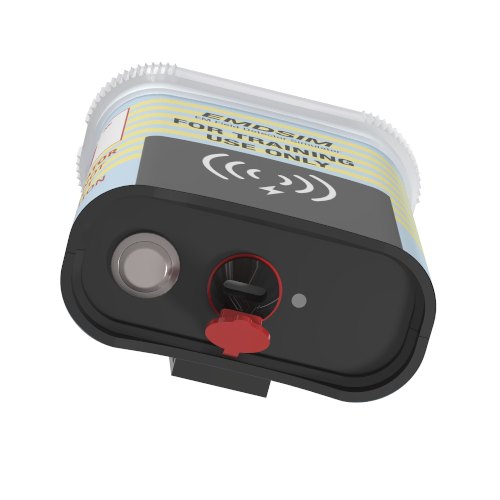

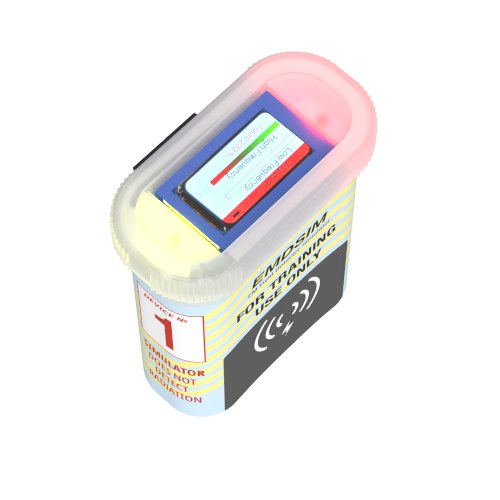

EMDSIM is a simulated electromagnetic field (RF) detector, for use in telecoms safety training.

The compact weather-resistant device is worn by the student, but controlled by the course instructor using a long distance radio remote control. It can be used in a classroom to demonstrate typical alarm and fault signals, and during practical exercises such as rooftop access or tower climbing.

How does EMDSIM work?

The unit claims to measure low- and high-frequency RF signals, comparing them to the safety standard limits (set by ICNIRP). In reality, the field strengths and alarms are being generated in two ways:

Each unit is linked to a 12-button radio remote control, that the course instructor can use to trigger any relevant combination of fields, alarms or fault conditions.
EMDSIM can also detect specially programmed Bluetooth Low Energy beacons, which can be placed around the training area (such as on a rooftop or climbing tower). It measures the distance to each beacon and calculates an equivalent "high power" field level. Since the beacon is a radio source, it responds like any other; shielded by metal, attenuated by the human body, etc.

There is no agreed standard for how an RF field detector should operate, or the alarm signals it should produce. EMDSIM is representative of the types of device in common use, but is not a substitute for brand-specific user instruction.

EMDSIM can be updated over WiFi should new features or customizations be required.

Specifications

Each EMDSIM is supplied with a remote control and USB charging cable. Kits of one or two devices are available, in a rugged carry case with remotes and one BLE beacon. Replacement remote controls and beacons are available.

EMDSIM dimensions: 90x80x40mm, 160g
Attachment: 50mm belt clip and safety loop

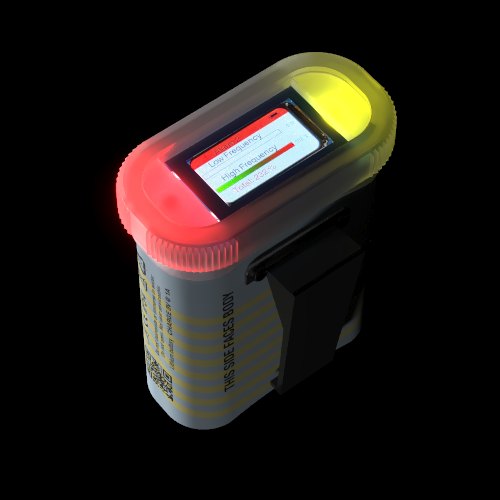

Display: OLED daylight-visible white on black
Battery: Internal LiFe rechargeable
Running time: Up to 16 hours
Charging: USB-C, 5V at 1A
Weatherproof: IP54 equivalent
Alarm range: 5% to 200%
Maximum display: 1000%
Remote control range: Up to 500m outdoors
Remote control band: 433MHz license-free
Beacon detection range: Up to 50m
Beacon band: BLE v4 at 2.4GHz

Ordering information

These products are assembled to order and can be customized for the purchaser; typical lead time is one to two weeks.
For more information or to place an order please contact us.

Current pricing (excluding VAT and shipping):

Single kit: £ 52.95
Twin kit: £ 89.95
Spare remote: £ 6.95
Spare beacon: £ 9.50

Due to export and shipping restrictions we can only sell to UK businesses, for professional use in the delivery of training programs. We will not supply devices if we believe they will be mis-represented as safety equipment.
